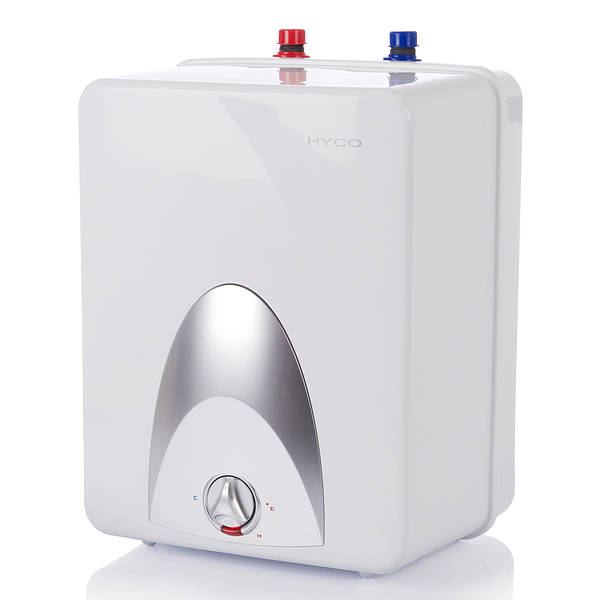

Speedflow 5 litre 2KW Unvented Water Heater

Unvented water heaters are fast becoming the option of choice for small commercial applications since they offer high performance, multiple sink capability and allow the use of regular taps. The Hyco Speedflow Premier is a new, stylish unvented water heater packed with useful features:

• Stylish design
• Stainless Steel flange element
• Power-on switch and neon power-on indicator
• 2.0kW element for rapid heat up
• 5L capacity suitable for single basin
• Continuously adjustable external temperature control 20-75oC
• Neon element-on indicator
• Glass-lined 2mm steel vessel with magnesium anode
• Manually re-settable thermal cut-out
• Choice of floor standing or wall mounting installation (stainless steel wall mounting bracket included)
• Pressure relief valve included
• Maximum working pressure 6bar
• Thick polyurethane insulation for energy efficiency
• Anti-shock and anti-static propylene casing
• Weight 5.5kg
• IPX4 water ingress rating (splashproof)
• Conforms to IEC335-2-21 and IEC335-1 CE and RoHS
• 320 x 280 x 245mm (H x W x D)
• Supplied with 1.5m of power cable
• Standby Energy Loss (energy required per day to maintain temperature)= 0.51kWh. Standby energy cost approximately 7p per day assuming 15p per kWh.
• 1 Year standard parts or replacement warranty

Connections on unit:

• 1/2" Male BSP. Colour coded -- red for hot, blue for cold

Plumbing Fittings required:

• 2 x 1/2" BSP male for connection to the pressure relief valve
• 2 x 1/2" BSP female for connection to the unit

Optional stainless steel rear-mounting wall mounted bracket and 6 bar pressure relief valve (above) are both included with the heater.
