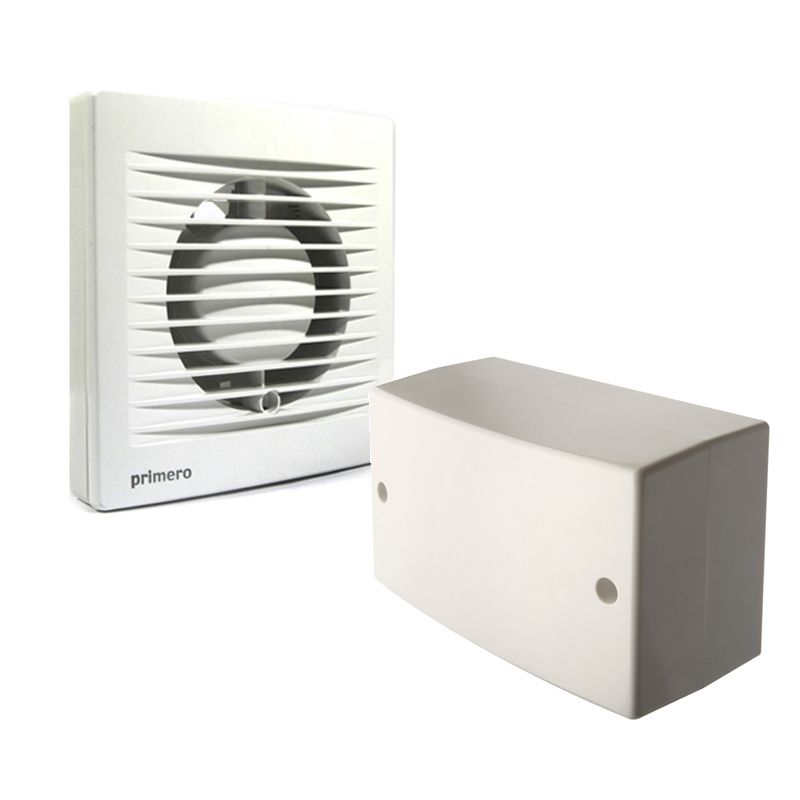

Suitable for mounting within the splash area of a shower or bath (where current regulations prevent the use of conventional fans), the 12 Volt is a standard model manufacturers with a 12V - 50Hz shaded pole motor.The remote timer transformer and switching mechanism is mounted remotely either in the roof space or high on the ceiling.The extract rate of the 100mm (4") model is 85m³/hr, 23 litres per second.
The units are all manufactured using high ABS thermoplastics for strength and durability, aesthetics and easy cleaning.Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance free life.Designed to comply with the 2006 Building Regulations on Ventilation (F1), rated to IP24.InstallationDesigned for wall or ceiling mounting through 100mm (4) diameter flexible or rigid pipes or low profile, flat channel ductiong systems.Electrical12 volts AC - 50HzSingle phase consuming 20 watts. Supplied by a remote safety isolating transformer.
