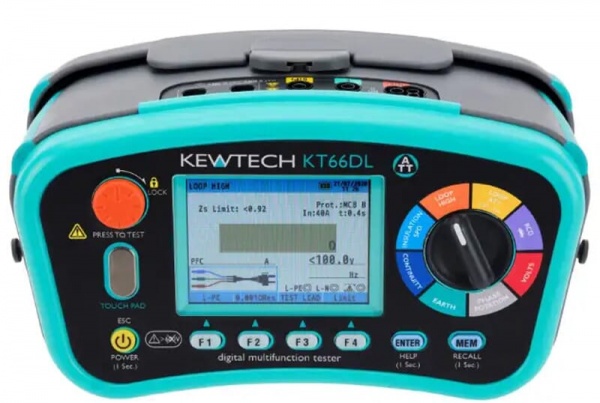

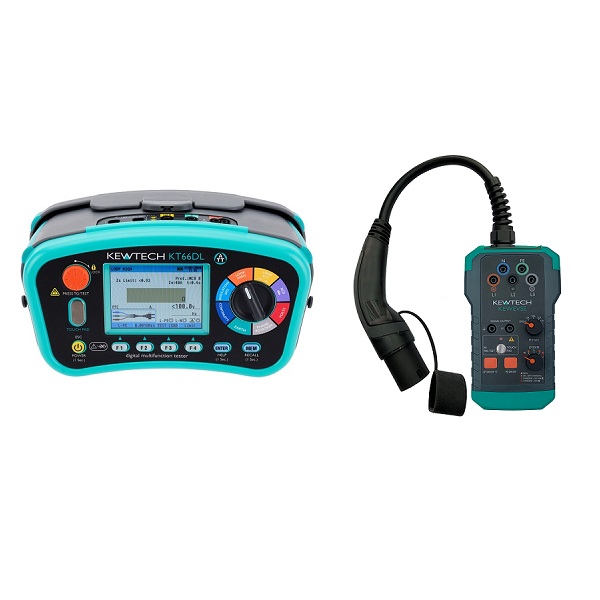

KT66DL - Multifunction Tester
KEY BENEFITS
- Large colour dot matrix screen
- Established easy to use interface with one rotary dial and four function keys
- Two high current loop options: 25A 0.001 Ohm resolution & 6A 0.01 Ohm resolution
- Two low current loop options: 3 wire & 2 wire
- EVSE loop option
- EVSE 6 mA DC ramp and tripping time test
- Insulation test function with PI
- Surge protection device test
- Comprehensive RCD function including type EV & B and variable RCD test
- Earth resistance 3 & 2 wire options
- PAT function including download
- G7 test leads
- Max Zs tables for current and old standards
- Phase rotation
- Advanced memory
KEY FEATURES
- Simultaneous display of L-N, L-N, L-E voltage (TRMS)
- Three modes of starting a test: single press of the test button, continuous testing and by test button in the test probe
- Help display
- Advanced memory - assigns DB, circuit no. and type of test i.e. Zs or Ze
- Two continuity tests 200mA & 15mA
- 55V loop test capability - suitable for 110V CTE systems
- Padded neck strap
- Supplied with G7 test leads and additional probe incorporating a test button
- Tests Type AC, ACS, A, AS, F, B, BS & EV
- UC - contact voltage test
- Touch voltage pad with selectable limits
- Heavy duty canvas carry case with extra room for you testing accessories
- The KT66DL has a lid to further protect your instrument. It easily folds under the instrument when in use
INCLUDES
- ACC064SP G7 test lead with remote test button
- ACC065 G7 Test lead set
- 8 x AA Batteries
- Instruction Manual
- End of line Calibration Certificate
- KAMP 12 Mains lead
- Test lead pouch
- Soft carry case

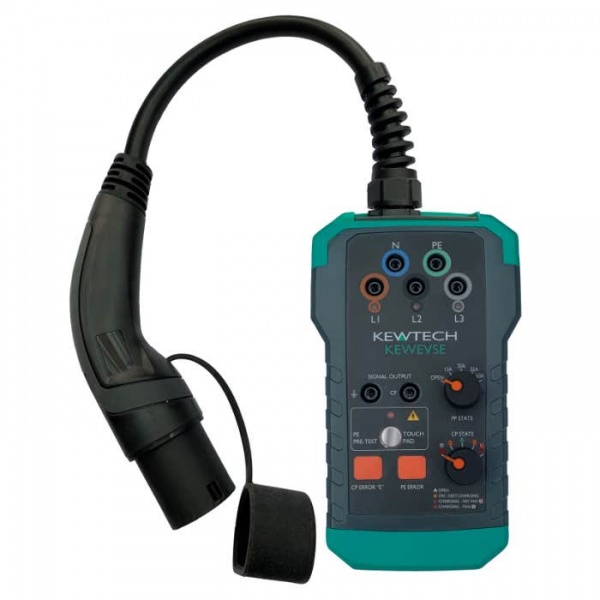

KEWEVSE - Testing Adaptor
KEY BENEFITS
- Compact - smallest in class
- Easy to use
- Allows for the electrical safety checks of a charging point in conjunction with an EVSE enabled MFT, like the KT66DL
- Checks the functionality of the EVSE
- Used for commissioning and trouble shooting
- For use on single phase or three phase systems
KEY FEATURES
- Type 2 male connector for EVSE connection
- 4 mm connectors and alternative BS1363 socket for connecting your tester
- CP & PP state adjustment rotary switches
- PE error & CP error simulation test
- Oscilloscope output
- Printed manual
- Carry case included
