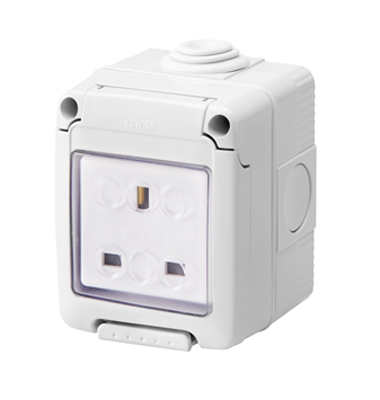

Gewiss GW27843 Watertight Enclosure Complete with Socket-Outlet 2P+E, 13A, British Standard IP55, Grey

A complete, versatile system of modular containers, perfectly integrable in the SYSTEM domestic range and able to meet the high protection installation requirements of the residential, commercial and industrial sectors. The 27 COMBI range is available both in the IP40 version and in watertight versions with IP55, IP65 and IP66 degree of protection, recommended for all outdoor applications which are subjected to extreme atmospheric conditions.

Insulation class II
Outer dim. LxHxD (mm) 66x82x65
Characteristics British Standard
Glow Wire Test 650 °C
Electrocod 0131
Standard IEC 60884-1
Colour Grey RAL 7035
IP degree IP55
Description Socket-outlet 2P+E - 13A
Voltage 250 V ac
Thermo-pressure with ball 70 °C
Installation temperature -25 +60 °C
